IDC Connectors

These connectors are particularly useful for automotive accessories, marine connections and lighting applications.

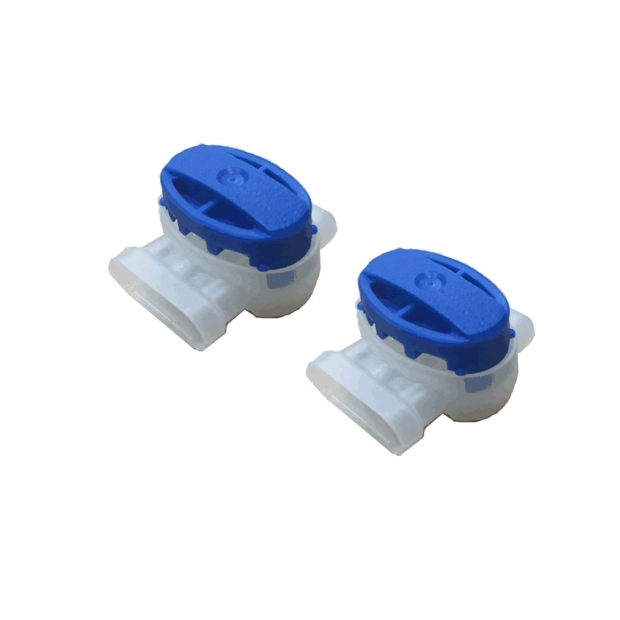

IDC Connectors feature a sharp internal metal insert that safely penetrates wire insulation with a simple pressing motion.
Once it is locked in place, the connector securely holds the wires in place, creating a quick and easy wire connections.
DETAIL
Material: Nylon 66 UL 94-V2
Sleeve material: Solid Copper
With gel filled for moisture resistance
Packing: 100pcs/Bag
ROHS & REACH Compliant

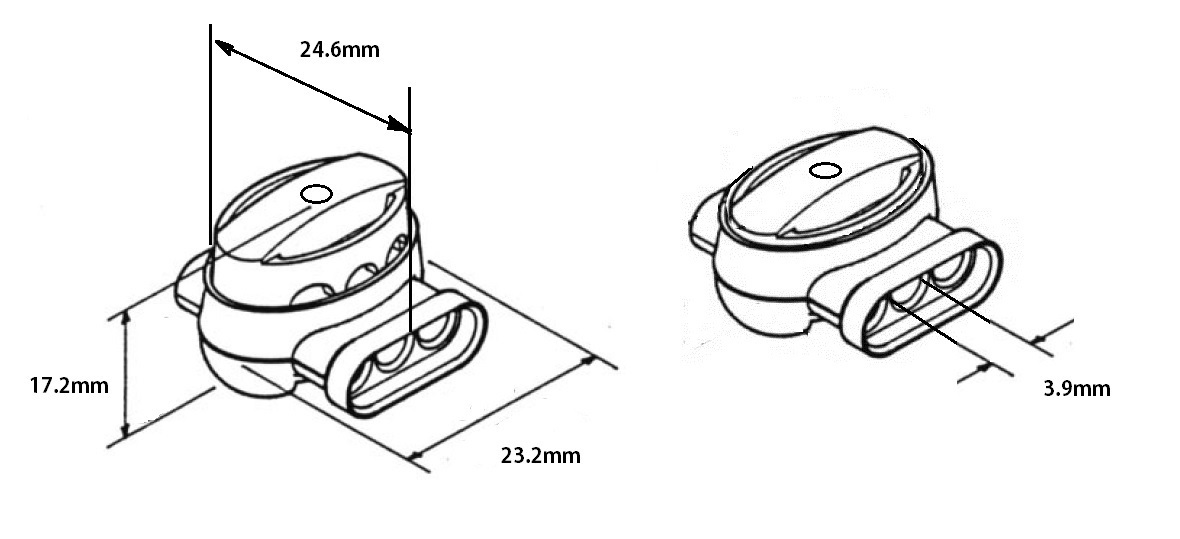

Item No. Max Insulation O.D. (mm) Application Color
UB-3 3.9 A two- or three-wire connection for Y type divergence wire of solid copper 0.33~2.0mm2(14~22AWG)  Blue
